About the Product

  • Housing material: Aluminum
  • Optics materials: PC cover (transmission >90%)
  • Radiation angle: 120°
  • Protection degree: IP65 (dust and watertight)
Leafy Greens is an encompassing term that applies to a variety of plants, including lettuce, microgreens, herbs, and specialty leafy vegetables. Leafy greens prefer cooler temperatures, making them a fall and winter crop. However, natural solar radiation is not optimal during these seasons resulting in longer production times. In addition to longer production, plants may become elongated and anthocyanins levels reduced. Without adequate light, growth related issues can become compounded.

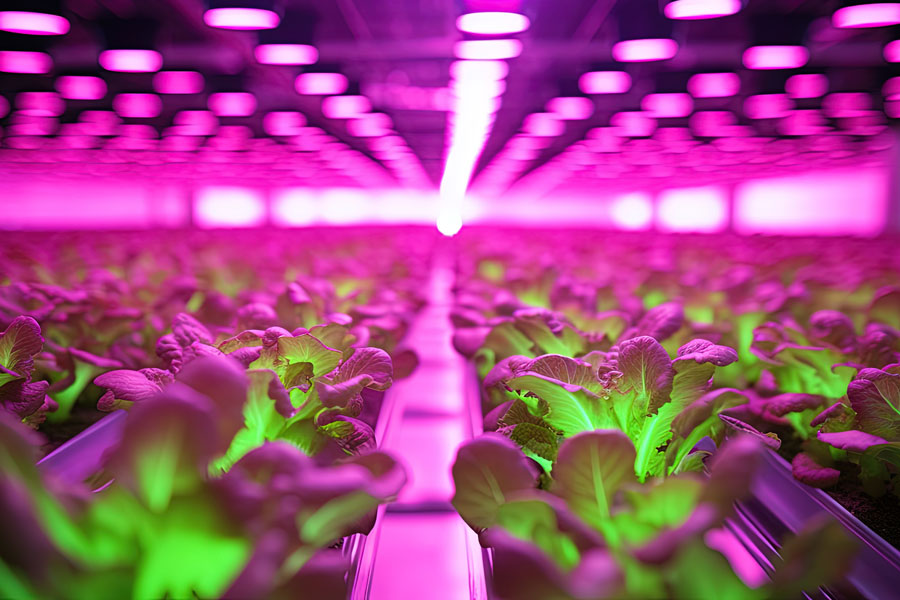

HL05-–-Horti-SingleTube-app-pic
HL05-Horti-SingleTube-product-page

Key Features

Horti-Spec Single Tube is designed for growth rooms and chambers, tissue culture and vertical farming applications. With excellent light uniformity when placed right above the canopy, it is ideal for vertical farming.

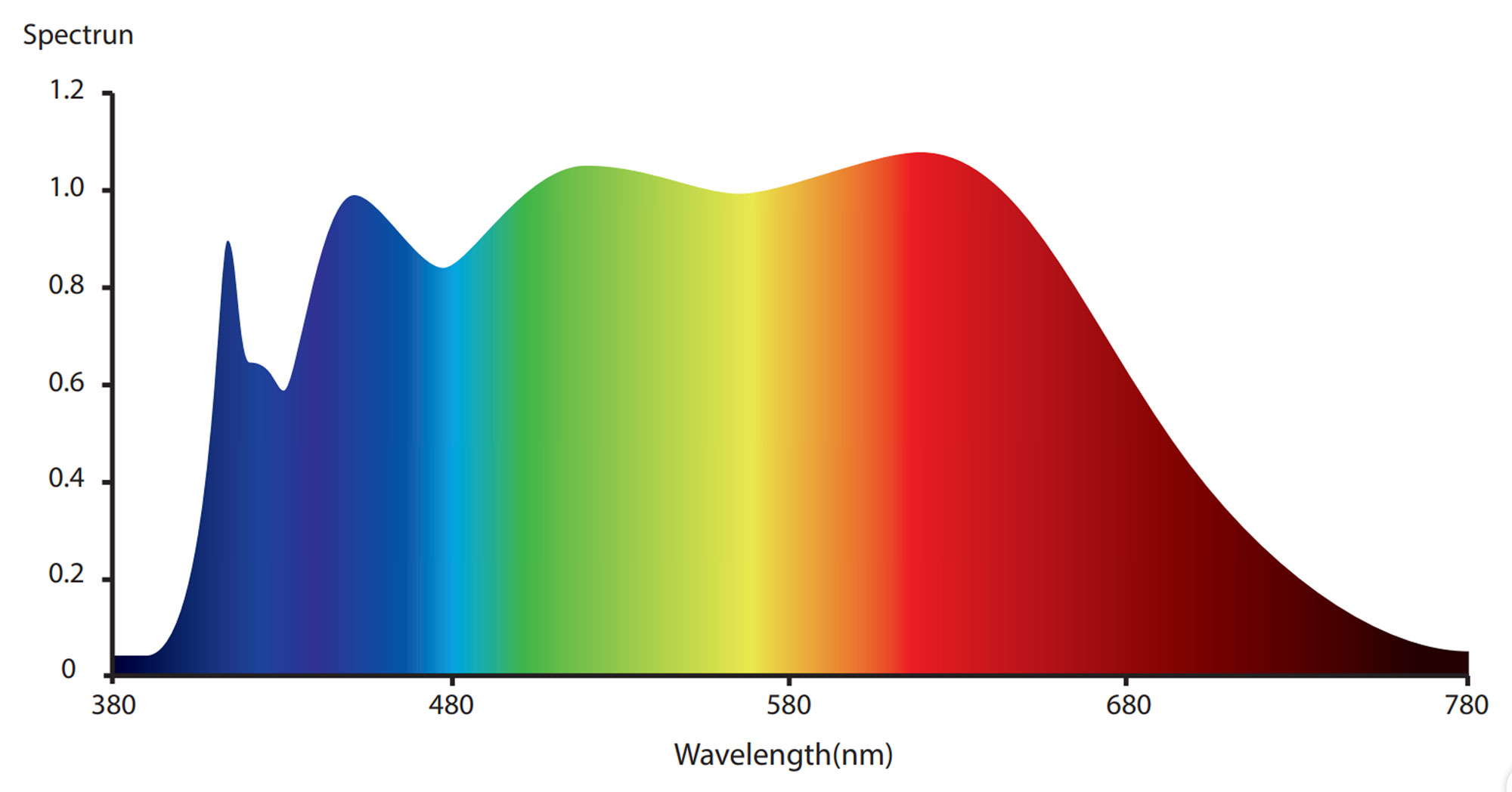

h05-HORTI Spec Tube Spectrum Chart

Spectrum Chart

  1. Full White Spectrum could be flexible to make 3500K,4000K,6500K
  2. Daisy Chain solution, plug-play External LED driver
  3. compatible
  4. Different Length options such as 60 cm,90 cm,120 cm

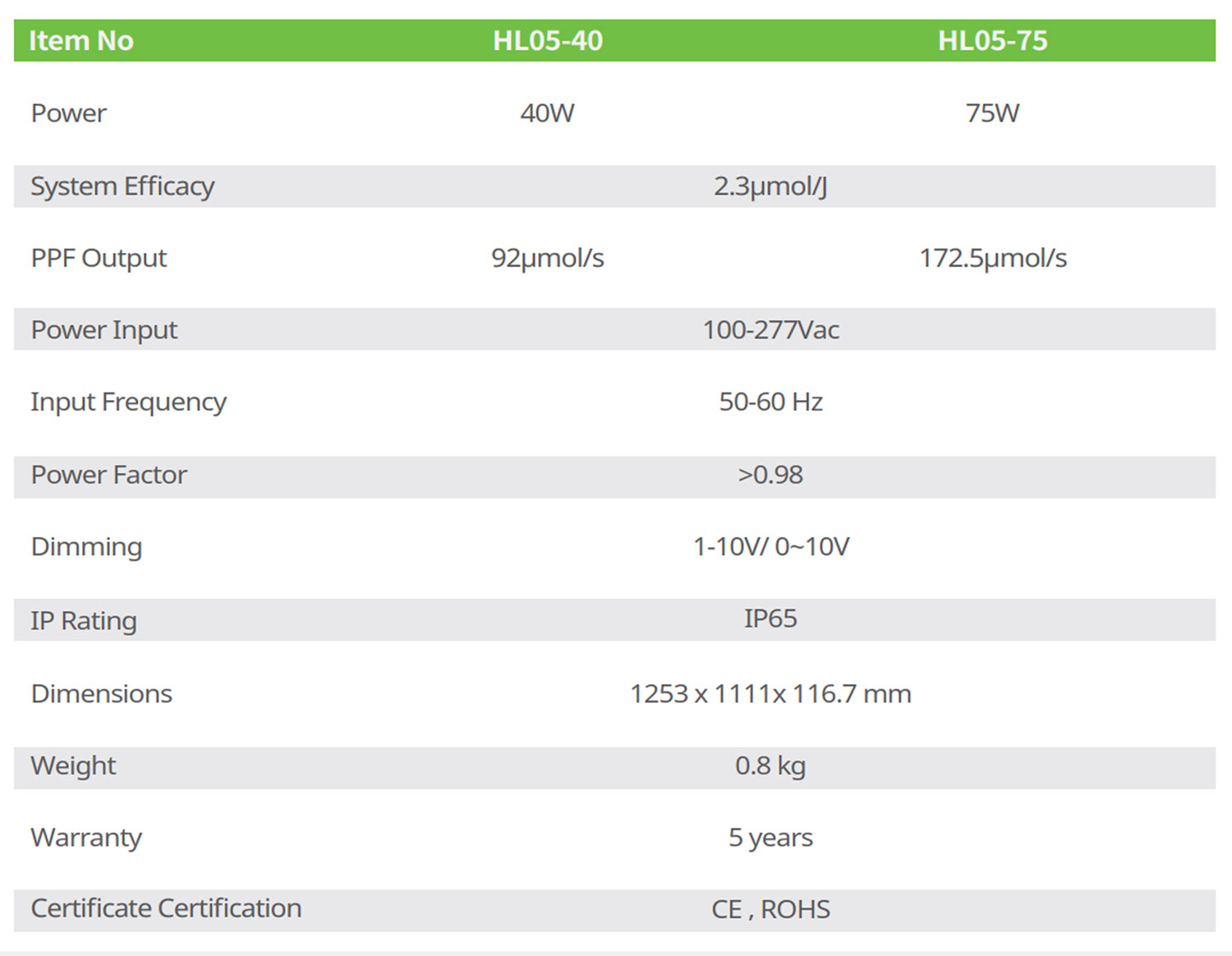

Technical Specification

h05-HORTI Spec Tube Technical Specification

IES test

h05-HORTI Spec Tube IE Test

Compliance

CE certification

Low Voltage Directive (LVD)

Electromagnetic Compatibility Directive (EMC)

Restriction of Hazardous Substances (RoHS) Directive

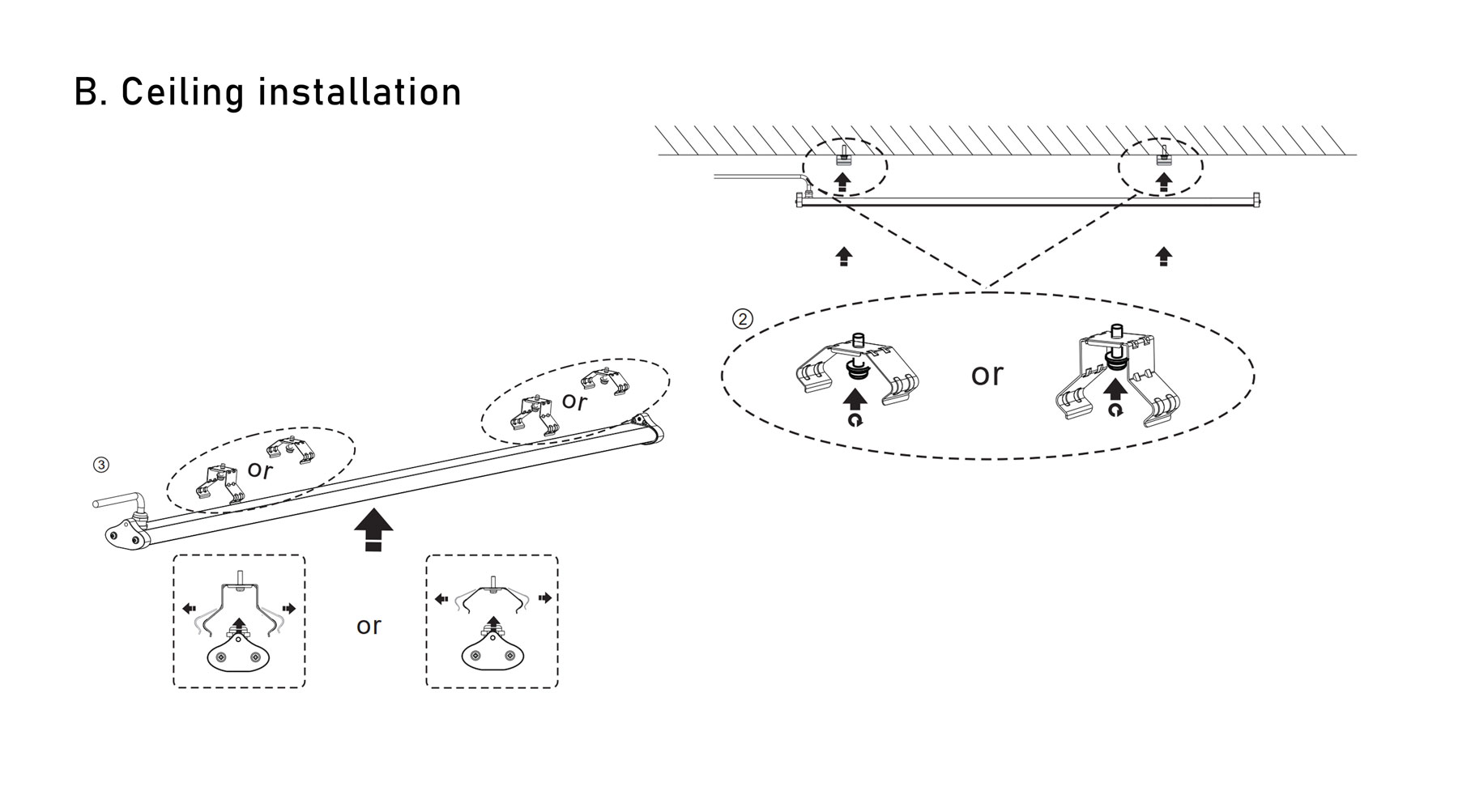

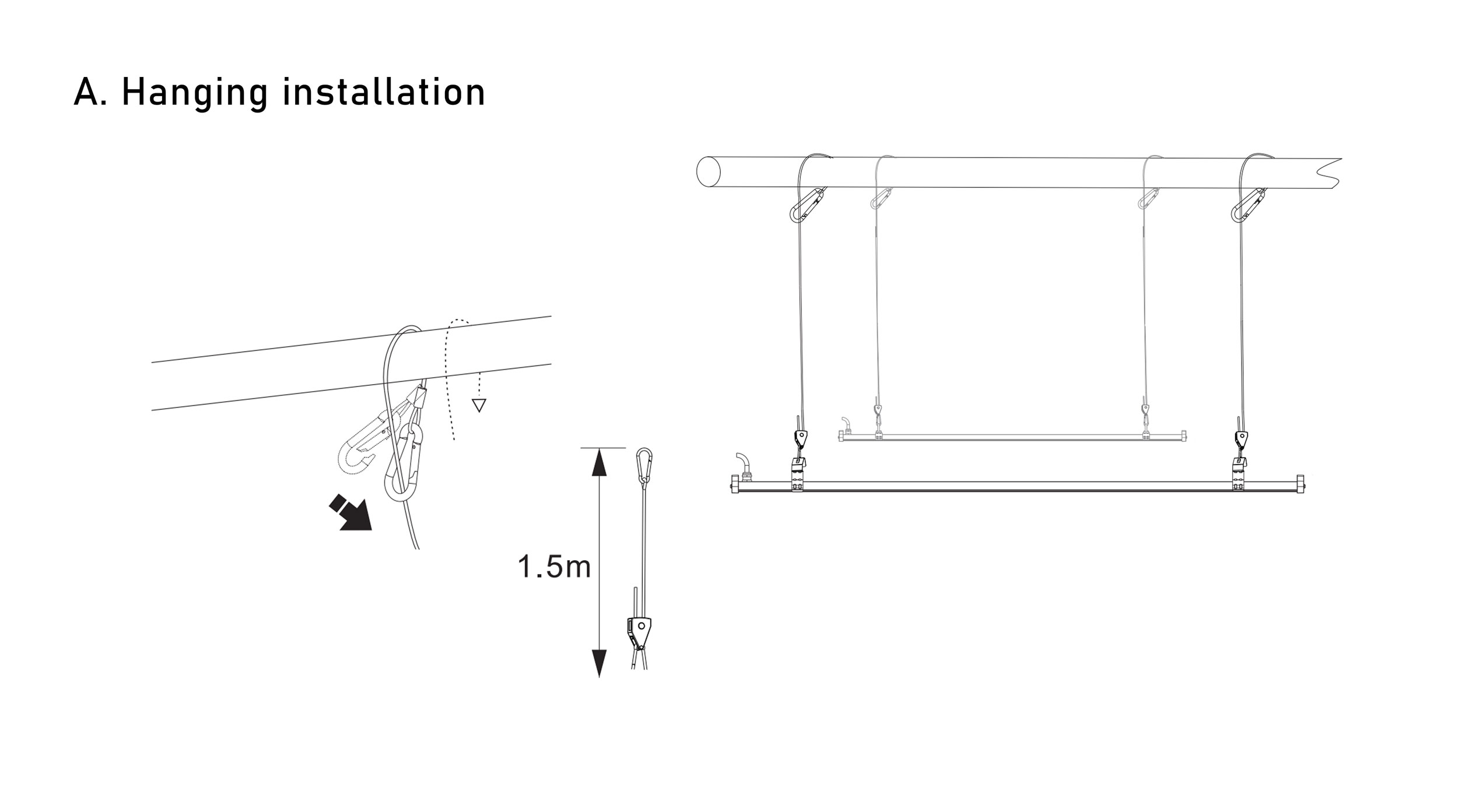

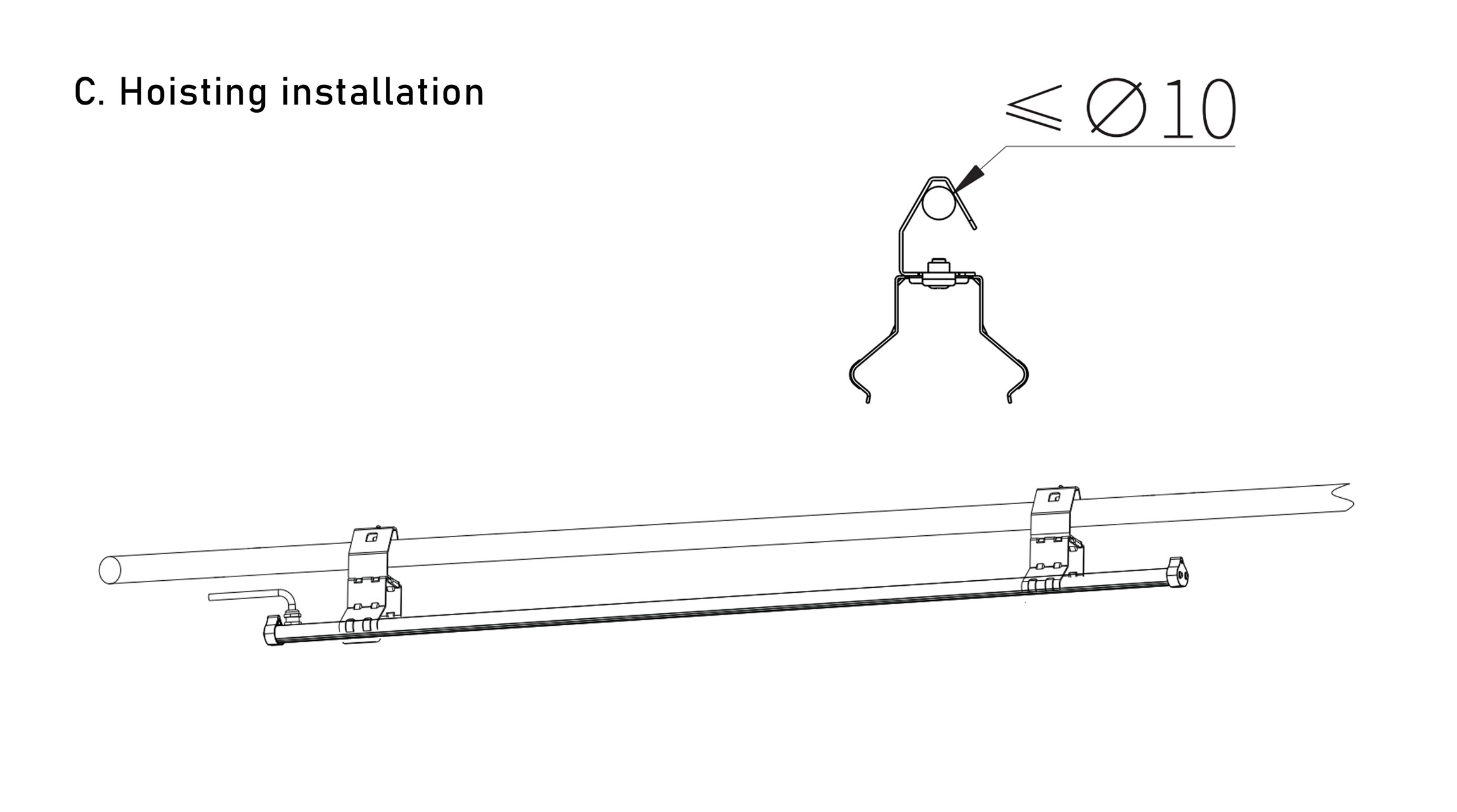

Installation Instructions
