HL03 – Horti Reina

About the Product

  • Housing material: Aluminum
  • Optics materials: Glass (transmission >92%)
  • Radiation angle: 120°
  • Protection degree: IP65 (dust and watertight)
Leafy Greens is an encompassing term that applies to a variety of plants, including lettuce, microgreens, herbs, and specialty leafy vegetables. Leafy greens prefer cooler temperatures, making them a fall and winter crop. However, natural solar radiation is not optimal during these seasons resulting in longer production times. In addition to longer production, plants may become elongated and anthocyanins levels reduced. Without adequate light, growth related issues can become compounded.

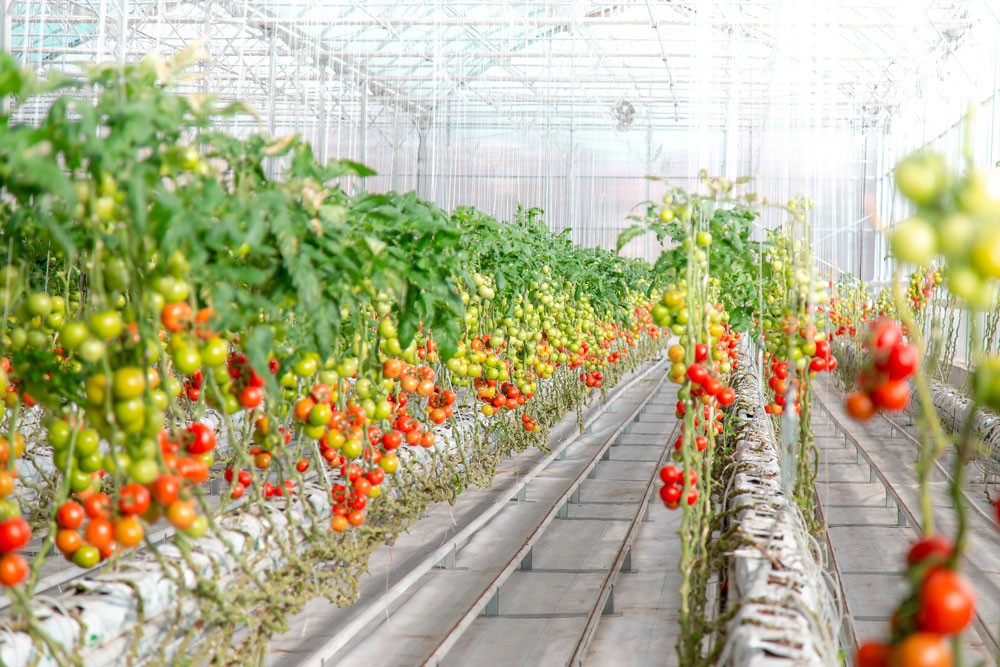

HL03--Horti-Reina-application

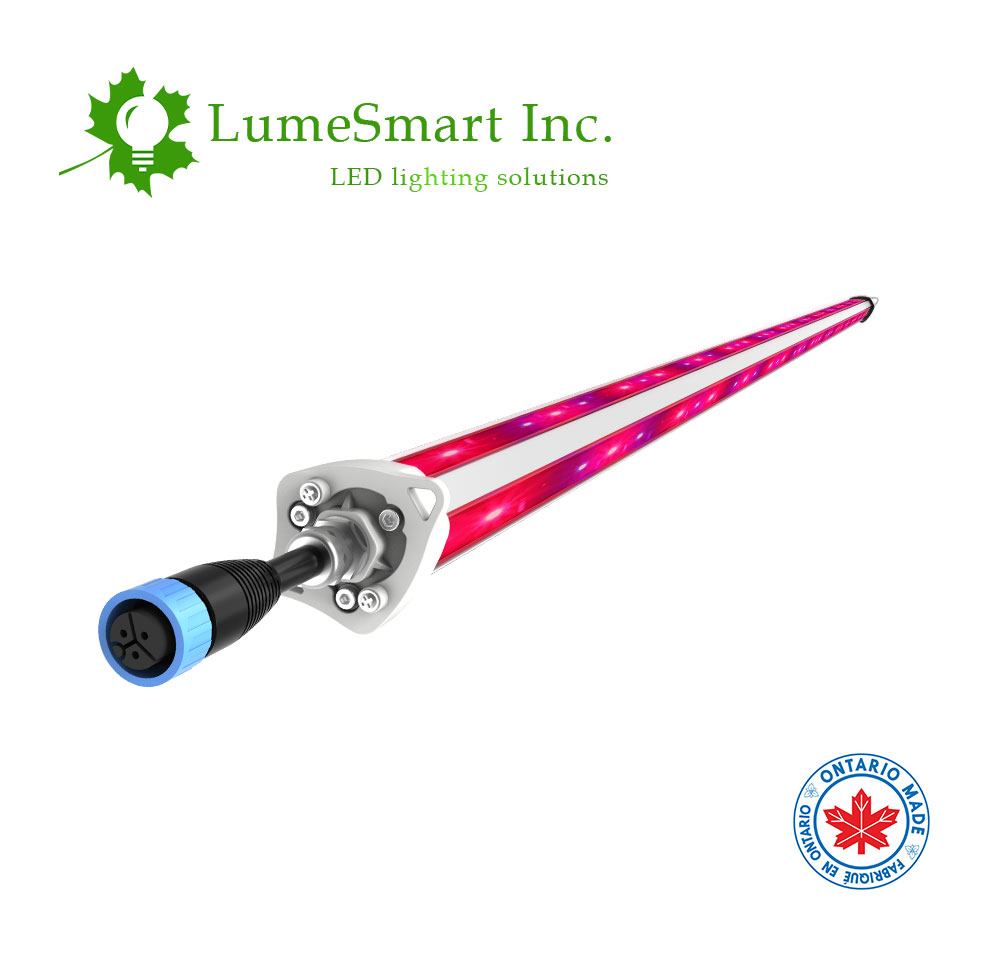

HL03-Horti-Reina-page-product

Key Features

Horti-Reina is a greenhouse supplemental intercanopy light, being angled with respect to the horizontal, that 120° light is only accessible at the highest part of the crop because of the density of the leaves of the plant.
Intercanopy lighting spreads the light more evenly over the canopy and in the middle part of the crop which increases flower development.

  • Daisy chain design helps save installation time and reduce total installation cost in commercial projects
  • IP65 rated makes LED intercanopy operate well in greenhouse, indoor or other high humidity environments
  • Double-sided lighting design, minimizes light interception and keeps the lower canopy to get optimal and uniform light.
  • Inverted triangle structure minimizes the shadow on the plant canopy which is caused by the light from the top

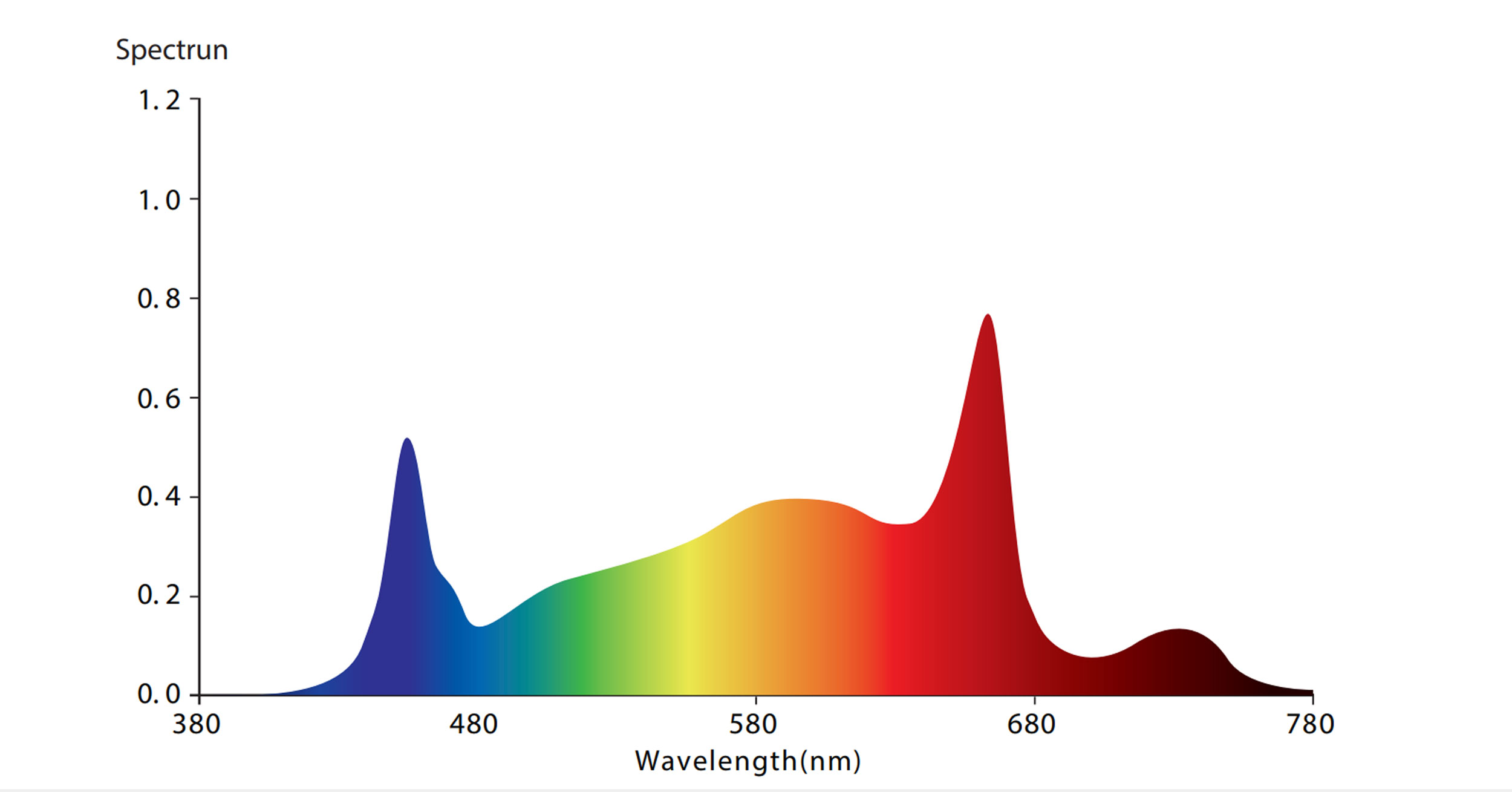

Optimal Spectrum - IES test - HL04-P03-00

Optimal Spectrum - IES test - HL04-P03-00

450nm blue light plays an important role in the early stage of plant growth and helps to establish a developed root system. With a peak wavelength of 730nm is designed to boost photosynthetic light levels in flowering stage, far red light will create a competitive response in plants, assisting in the formation of trichomes.

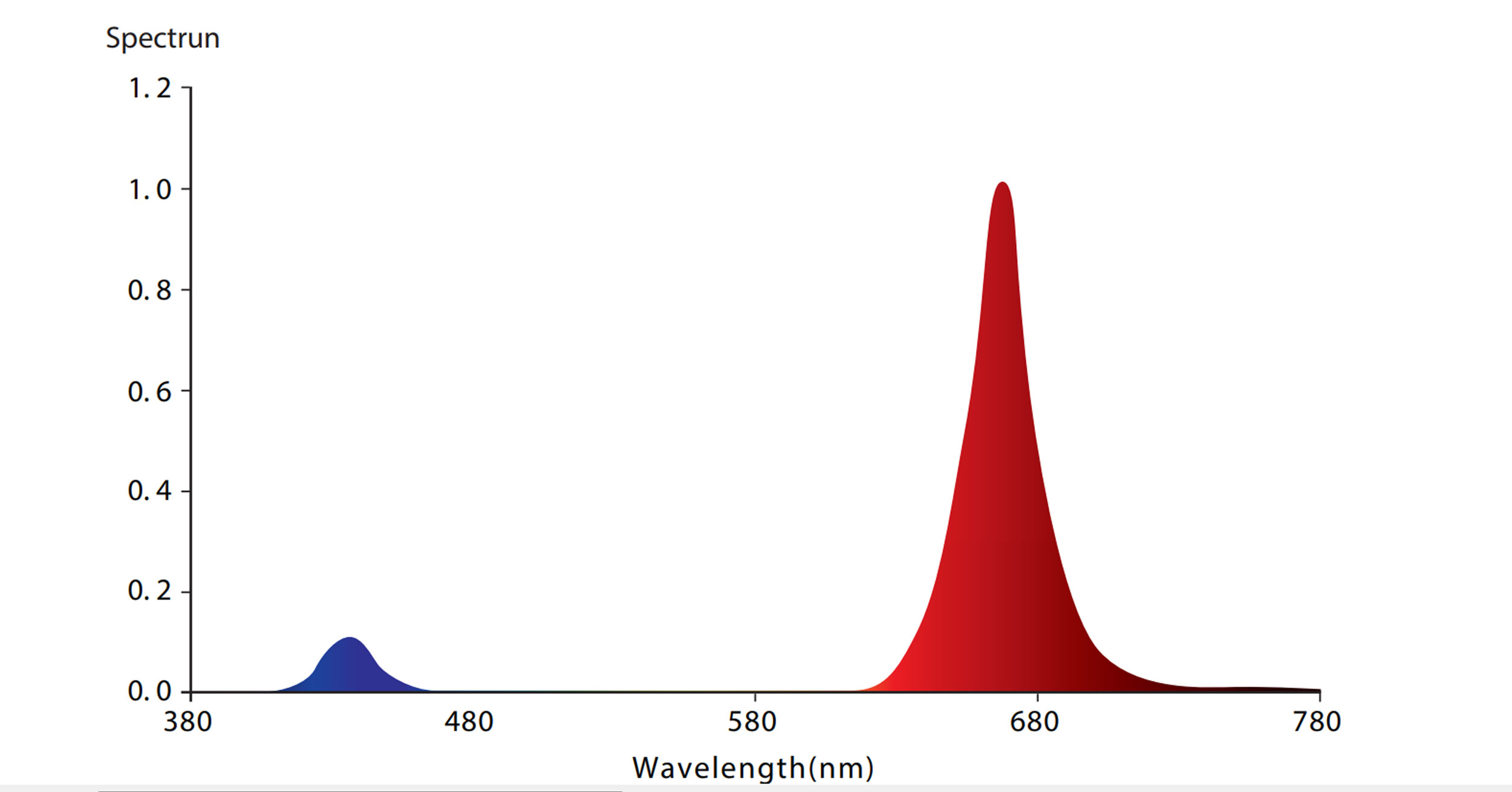

Optional Spectrum - IES test - HL03-P03-00

Optional Spectrum - IES test - HL03-P03-00

HL03-P03-00 features two narrow spectral wavelength that maximize energy efficiency, aiming to further reduce energy cost and operational expense.

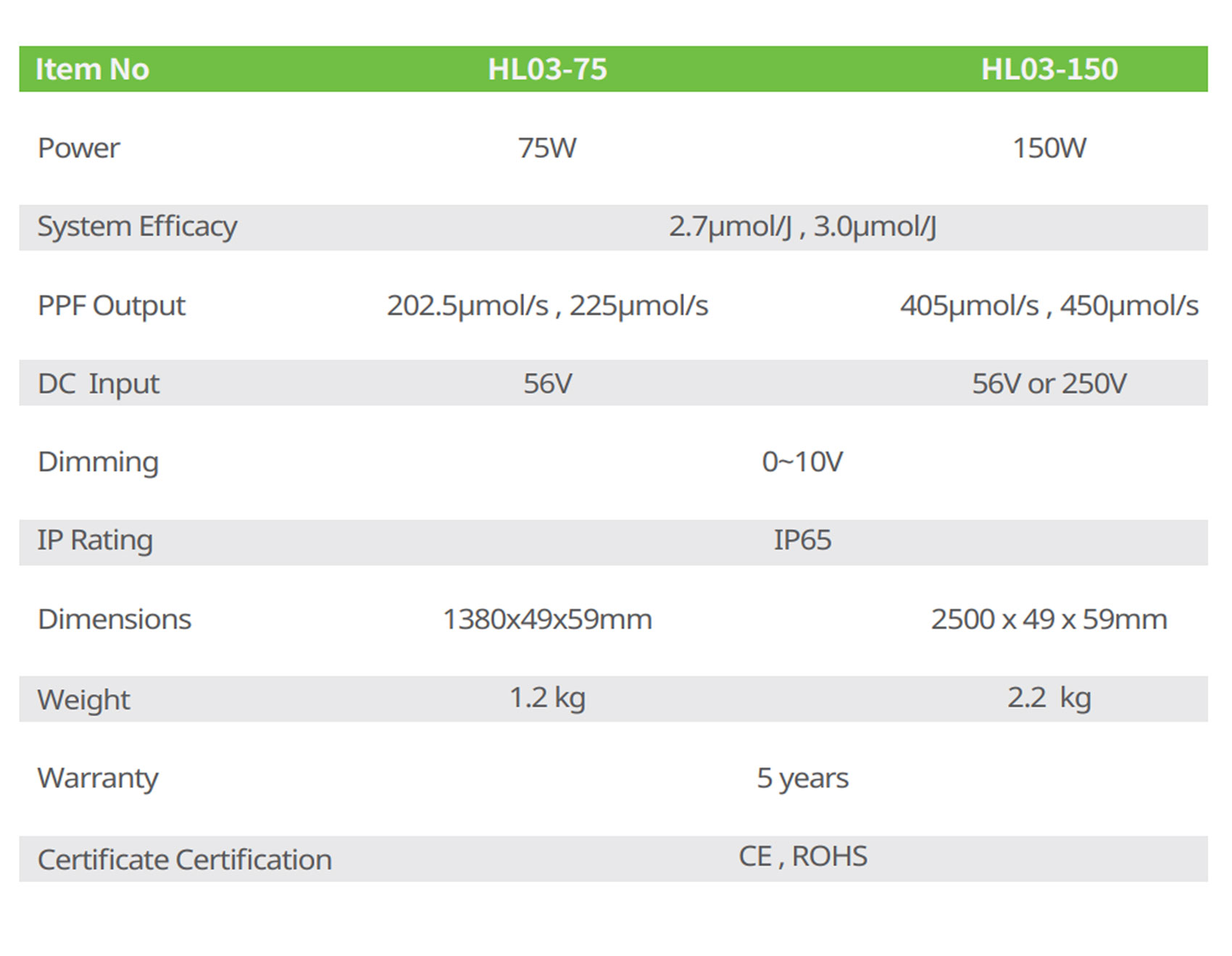

Technical Specification

HL03-Horti-Reina-Technical-Specification

IES test - HL03-P03-00

HL03-HORTI-Reina-IE-test

Compliance

  1. CE
  2. ETL
  3. Low Voltage Directive (LVD)
  4. Electromagnetic Compatibility Directive (EMC)
  5. Restriction of Hazardous Substances (RoHS) Directive

* typical values for stable operation at 25° C /77 ° F ambient temperature

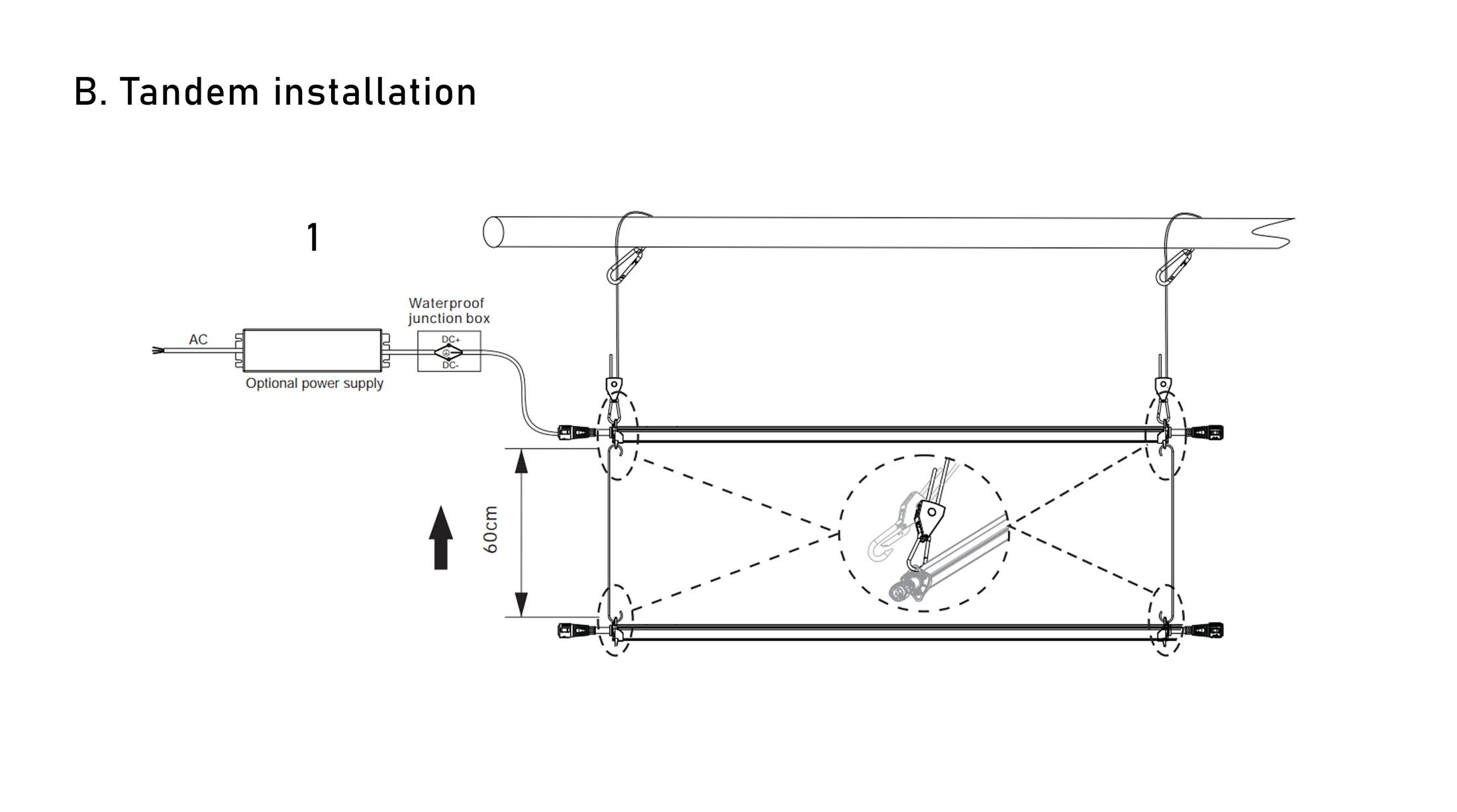

HL03 Horti Reina Linkable Solution

HL03-HORTI-Reina Linkable-solution

HL03 Horti Reina Driver Connection

Horti-Reina is built to conect by an external driver, would be highly recommended for commercial projects installation, and optional for Artesyn iHP Series 250 V output.
With the right DC output voltage (56 V as standard), it can be compatitable for different LED driver brands such as Sosen, Meanwell, Inventronics

HL03-Horti-Reina-Driver-Connection
